Autonomous Sanitation Solution

Autonomous Sanitation Solution

Robot Supervisor

The Robot Supervisor is an AI-powered assistant designed to support residents in adopting proper waste segregation practices. Equipped with a high-definition camera, the robot provides on-site guidance and flags instances of incorrect sorting.

Key features include:

  • 24-hour active monitoring
  • Automated waste type recognition
  • Real-time user assistance
  • Autonomous navigation and self-recharging

By bridging the gap between automation and human behaviour, the Robot Supervisor plays a pivotal role in ensuring compliance and improving segregation accuracy—particularly during the initial stages of system deployment in new communities.

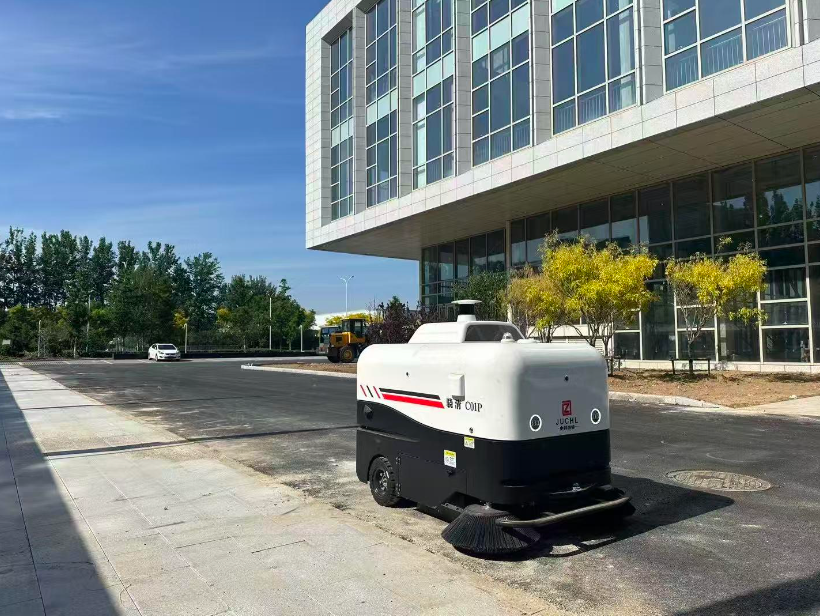

Autonomous Electric Road Sweeper

The AI-based road sweeper is a groundbreaking smart sanitation solution that combines autonomous driving technology, IoT connectivity, robotics, and sustainable design principles. Fully electric, the vehicle is engineered for high performance with:

  • Autonomous Driving — Performs cleaning along preset routes without manual operation.
  • Intelligent Perception — Ball radar + dual single-line radar + dual monocular cameras detect obstacles, pedestrians, curbs, reflectors; triggers safe avoidance.
  • Precision Cleaning — Main/side brushes with adjustable height, rotation, ground clearance.
  • Intelligent Scheduling — App-based task dispatch, remote monitoring, flexible scheduling.
  • Automatic Charging — Auto-navigates to charging pile when battery is low.
  • Data Collection and Analysis — App logs cleaning area, duration, cleaning count.
  • All-weather Operation — Rain & light sensor enables auto-recall in rain, auto headlights in low light.
  • Eco-friendly & Energy-saving — Fully electric, LiFePO₄ battery, zero emissions.

While it is capable to operate in full autonomous, the road sweeper can also be controlled remotely when necessary via a cockpit located in the command centre. It represents the future of urban sanitation—clean, efficient, and intelligent—while drastically reducing emissions and reliance on manual labour.

Maximum Power Endurance Cleaning Width Garbage Bin Capacity Water Tank Capacity Sensor
90AH/48V (LiFePO₄) 4 h 1300 mm 90 L 50 L LiDAR, Camera

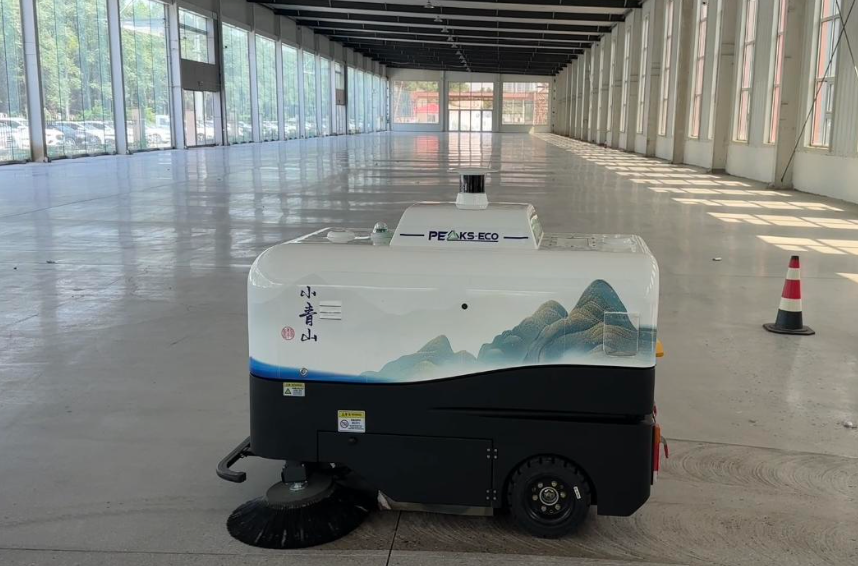

Product Introduction Designed for relatively enclosed park-type environments — factories, airports, communities, and campuses. Integrates a high-precision positioning and navigation module for continuous centimeter-level accuracy, fusing LiDAR and visual perception for saturation-level cleaning. Users can select full-coverage, edge-following, or zone-specific cleaning via the app, with automatic charging, automatic water refilling, and automatic return when battery or water runs low or the bin is full.

Functions of the Sweeper

  • Autonomous Driving： It can perform cleaning tasks along pre-set routes without manual operation.
  • Intelligent Perception： Multiple sensors detect obstacles ahead, including pedestrians, vehicles and other objects, to trigger safe responses and avoid collisions.
  • Precision Cleaning： Equipped with high-efficiency cleaning components such as side brushes and main brushes with adjustable height and angle, it adapts to various road conditions and guarantees cleaning quality.
  • Intelligent Scheduling：Remote monitoring and scheduling are realized via the cloud platform. Work plans can be flexibly arranged according to road conditions, cleaning requirements and other factors.
  • Automatic Charging：When the battery level is low, the robot can automatically navigate to the charging pile for self-charging.
  • Data Collection and Analysis：Various data during cleaning operations are recorded, including cleaning area, waste volume and cleaning efficiency, providing a basis for subsequent optimization.
  • All-weather Operation：Unrestricted by time and weather conditions, it can work continuously at night, in early morning and under harsh weather, improving work efficiency and urban cleaning coverage.
  • Eco-friendly & Energy-saving： Powered by electricity with no exhaust emissions, complying with green and sustainable development.

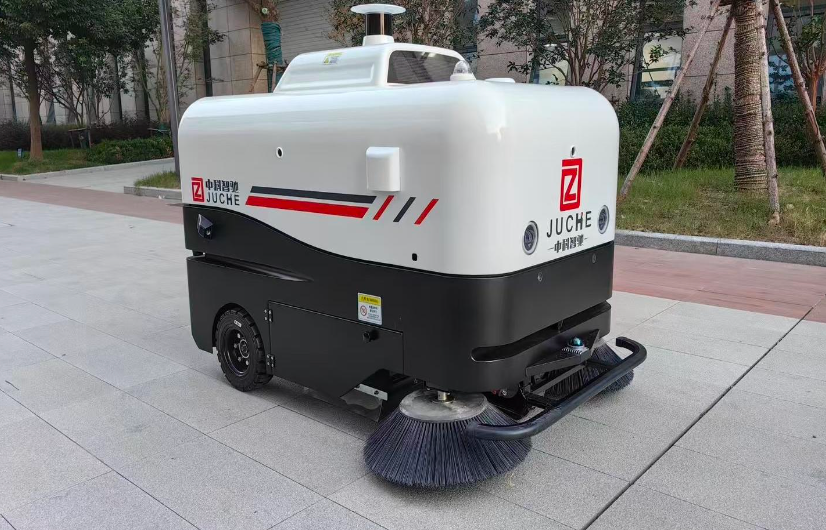

Electric Sweeper (Orient Robotics)

As a model combining modern technology and environmental protection concepts, the electric sweeper fully embodies mankind’s vision for future urban cleaning and maintenance. Powered by electricity, this vehicle not only reduces environmental pollution caused by traditional fuel-powered sweepers, but also achieves efficient and intelligent cleaning operations through integrated advanced technologies.

333
Travel Speed Side Brush Length Battery Capacity Working Efficiency Dust Bin Capacity Water Tank Capacity
10 km/h 790 mm 48V / 200Ah 13,000 m²/h 180 L 200 L
Product Introduction This electric enclosed high-power sweeper features low noise, flexible operation, low consumable consumption, and high cleaning efficiency. It is suitable for harsh environments such as cold climates and areas with heavy sand and dust.
